Raizer II Patient Lifting Chair - Liftup

The Raizer II Patient Lifting Chair by Liftup is a battery operated mobile lifting device that helps fallen patients get back up on their feet in just a few minutes, without the carer having to overexert themselves. You can now lift a fallen patient to an upright sitting position or almost standing without any effort by using this innovative and portable device.



This patient lifter is easy to assemble and only requires one person to be operated. Minimal effort required from the carers, as they don’t have to lift the patient – completely avoiding potential injuries.



With unique features and benefits, the Raizer II offers the ultimate in convenience, safety, and ease of use. The unique design with intuitive sound and light indicators makes the patient lifting chair easy to quickly assemble at any location.





Who can use the Raizer II Patient Lifting Chair?



The Raizer II Patient Lifting Chair is designed for use in hospitals and aged care homes, or for rescue services and paramedic duties. When a patient falls on the floor, this lifting chair can be operated to automatically raise them to their feet in as little as 20 seconds, without the need for carers to strain themselves unnecessarily.





Lift patients with ease



Patients who are prone to falls may need help getting up on a regular basis, which can place extra strain on both patient and carer.

The Raizer II is designed with simplicity in mind, with a user-friendly operation that requires minimal effort from the carer or fallen person.

Assembly takes 2 minutes, while the lifting itself takes 30 seconds!









Safe patient lifting:



The Raizer II patient lifter is designed with safety in mind, featuring a sturdy base and an adjustable safety belt to ensure stability. The belt will make sure that the fallen person feels secure and comfortable during the lifting process.



The chair has two parts – a seat and the backrest as separate sections. The chair is assembled in place and slid under the user, without having to lift the patient. The carer can - with no further assistance - handle the Raizer II and help the fallen person, just by pressing on the button of the remote.



In the event that the set-up is incorrect, the chair releases a sound and flashes the LED indicators. The Raizer II's 'end stop', guarantees correct positioning. Assembly only requires 4 steps and patient disruption is minimal.







Quick to set up:



This patient lifting equipment is quick and easy to assemble and set up, with a compact design that can be deployed in seconds, even in tight spaces. Assembly takes about 2 minutes while lifting takes 30 seconds!

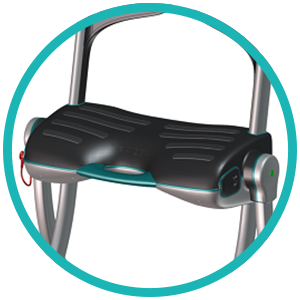

It features a seat with motor, 2 identical backrests and 4 legs.



This innovative device ensures the chair is properly assembled for every use. The Raizer II offers an exclusive and user-friendly design with intuitive sound and light indicators, making it easy to quickly assemble the Raizer II at any location.







How to assemble the Raizer II?

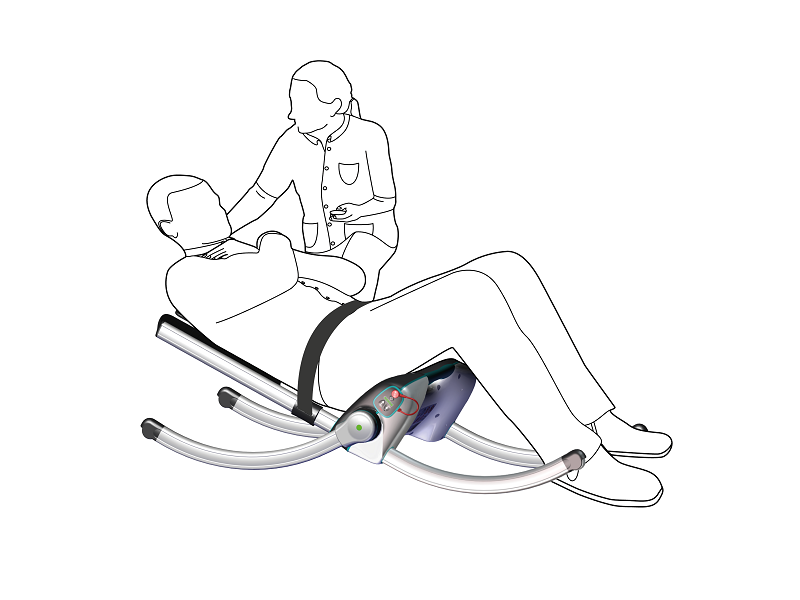

The motor with seat is placed under the user’s knee and the backrest section of the device is placed under the back, where the backrest and seat snap together.

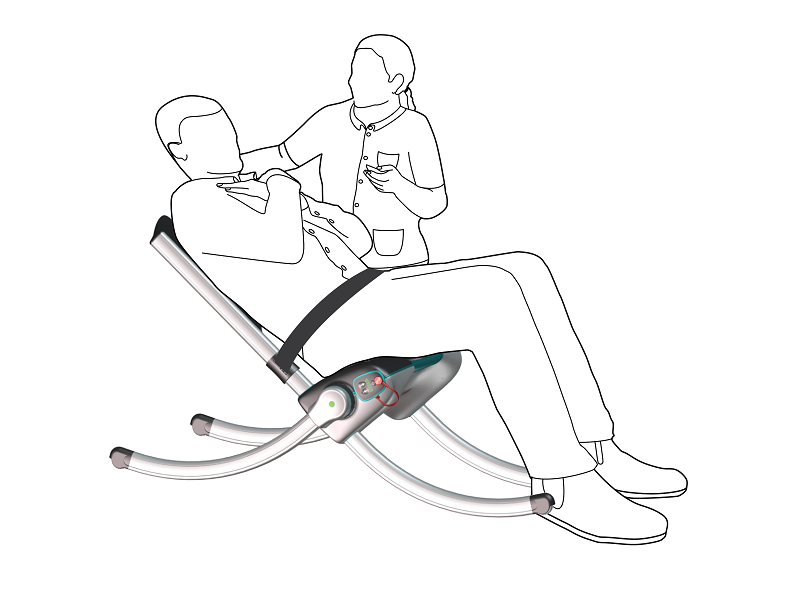

Once the seat and the backrest are attached and secured together, a battery-operated motor raises the chair and the user to a seated position. This lifting chair allows a single carer to safely and easily lift a patient from the floor, all with the touch of a button, to an upright seated position.





Portable and mobile solution

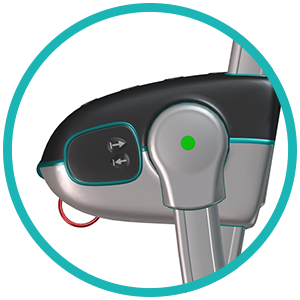

The Raizer II is lightweight and easy to transport, making it the ideal solution for anyone who needs to move from place to place. The patient lifting chair is battery operated and does not need to be connected to a power outlet. It is easily operated with a remote control, kept on the side of the seat. If the remote is not returned to its place after use, the Raizer II will emit a warning beep.





The Raizer II comes in 2 practical carrier bags. The backpack style bag - with carrying straps - contains the backrest and the legs while the motor unit with seat is carried separately in a protective cover.





Where can the Raizer II be deployed?



The patient lifting device is very suitable for home use, aged care facilities, clinics and hospitals, rescue services and other services that require a lifting aid for individuals with limited mobility.





Easy to clean



All surfaces of the Raizer II are easy to clean, helping promote a healthy environment. The surface of the Raizer II also allows for it to be easily disinfected.









Indication for use

The Raizer II is for lifting individuals with no or minor injury. It is designed for ambulant persons, who can normally get around themselves. Make sure to only use the lifting chair when the fallen person is safe to be moved.



Features of the Raizer II

• Mobile Emergency Lifting Chair

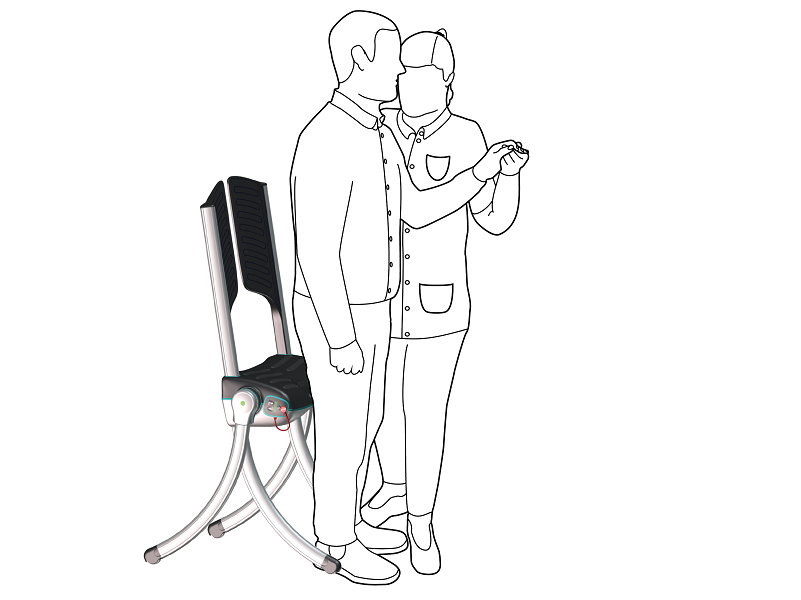

• Raises a fallen person to an almost standing position in just 30 seconds
• Requires minimal carer’s assistance
• Prevents a helper from having to carry the fallen person, reducing strain potential injury
• Easy to set-up underneath the fallen person
• Straightforward assembly in just 4 steps
• Supports the entire body throughout the lifting process
• Intuitive sound and light indicator for smooth assembly
• Operated with an easy-to-use remote control
• Comes with two carry bags for on-the-go use
• Fallen person and helper can both feel safe







FAQ For Raizer II Patient Lifting Chair



Can the Raizer II be used outside?



Yes, the Raizer II can be used inside aswell as outside. It’s been tested on grass, gravel and paving as well as all types of indoor floor surfaces like carpet, tiles and timber.





Will the Raizer II work in spaces where there is no room for a hoist?



Yes, the Raizer II requires little more than the footprint of the fallen person to be operated. There’s no need for a turning circle that would be necessary when you use a hoist.





Is it easy to work out what goes where?

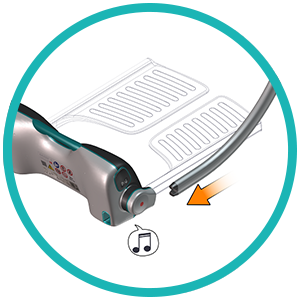

All the leg sections are identical, so it is virtually impossible to assemble the patient lifting equipment incorrectly. There is an audible beep when each section is inserted correctly into the seat unit.





How high does the Raizer II lift a person?



The Raizer II can lift someone either to a seated position or to a perching position for very easy transfers once the lift is completed. The Raizer II can also be stopped at any point and reversed if necessary.





Is it really possible for one person to lift someone who has fallen?



Yes, the great feature is that there is absolutely no manual lifting involved, reducing the risk of injuries for the assistant completely. All that is required is, for a carer to operate the controls to lift the fallen person. Take a look at our video to see how it is done.





How long does the battery last?



On a fully charged battery, the Raizer II is capable to lift someone up to 80 times. A single lift is possible on a 10 minute charge. There is a battery indicator on the control panel that gives you a visual indication of the battery’s state of charge.





What is the weight of the battery?



The battery the Raizer II uses is the LiFePo4, 12V, 5AH, which weighs 725 grams by itself.





Specifications:

• Weight Capacity: 150 kg
• Assembly: a few minutes
• Lifting time: 20-30 seconds
• Total weight: 13 kg
• Seat weight: 8.5kg
• Battery capacity: 80 lifts per full charged battery
• Charging time: 6 hours
• Seat dimensions: W 68.6cm x D 25.7cm x H 19cm
• Materials: selected with attention to stability and durability
• Control panel with battery indicator
• Alert feature notifies when the chair requires service inspection
• Charger type: USB charger and 15W charger for standard power socket
